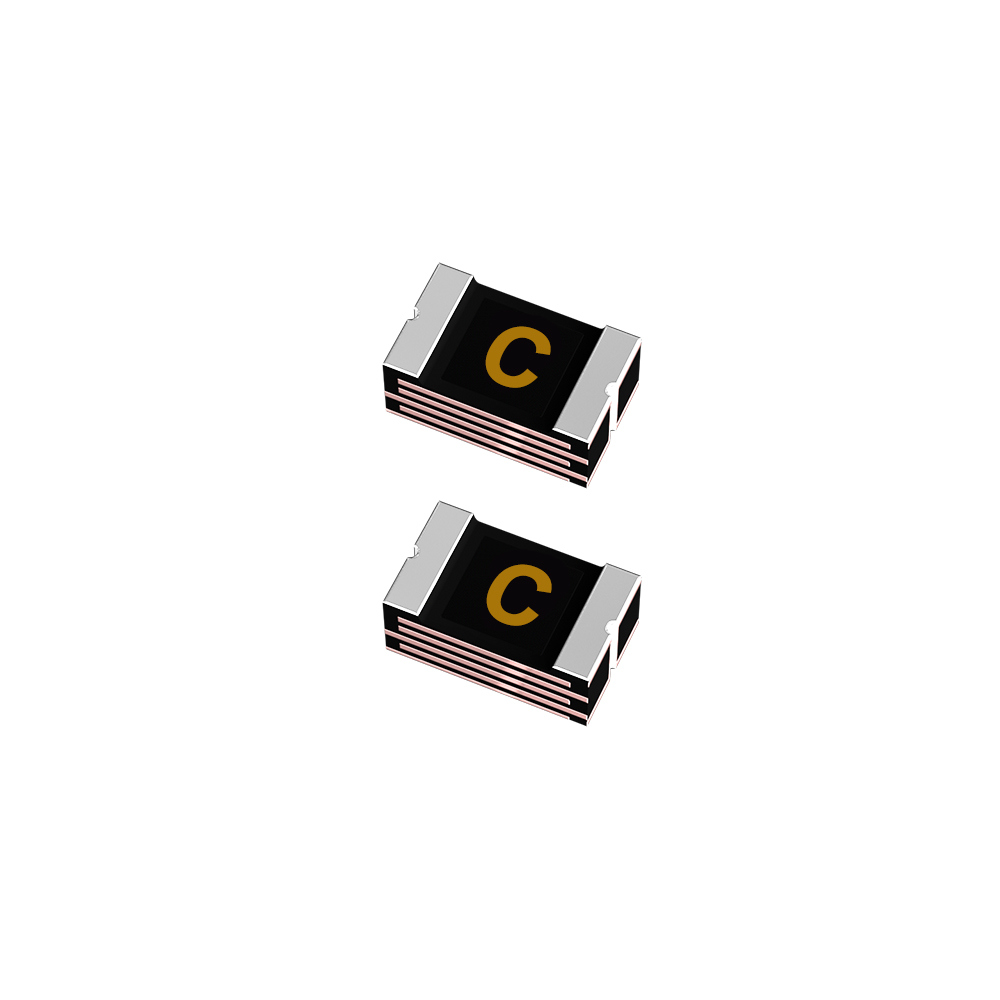

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
0805L075WR
Manufacturer
LittelfuseManufacturer Product Number
0805L075WR
Description
PTC RESETTABLE 6V .750A SMD 0805
Manufacturer Standard Lead Time
10-15
Detailed Description
Product Attributes
| Type | Description |
|---|---|
| Category | Boxes, Enclosures, Racks andBox Components |
| Operating Temperature | -40℃~85℃ |
| Maximum Current | 40A |
| Maximum Voltage | 6V |
| Initial Resistance Value | 90mΩ |
| Holding Current | 750mA |
| Trip Current | 1.5A |
| Maximum Operation Time | 200ms |
| Resistance After Trip | 350 mΩ |
Documents & Media
| Resource Type | Link |
|---|
Environmental & Export Classifications
| Attribute | Description |
|---|
Additional Resources
| Attribute | Description |
|---|
In Stock: 1,544
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1+ | $ 1.5443 | |
| 3000+ | $ 1.5443 |
Price For：Each
Minimum:1/Multiple:1
Total amount:
