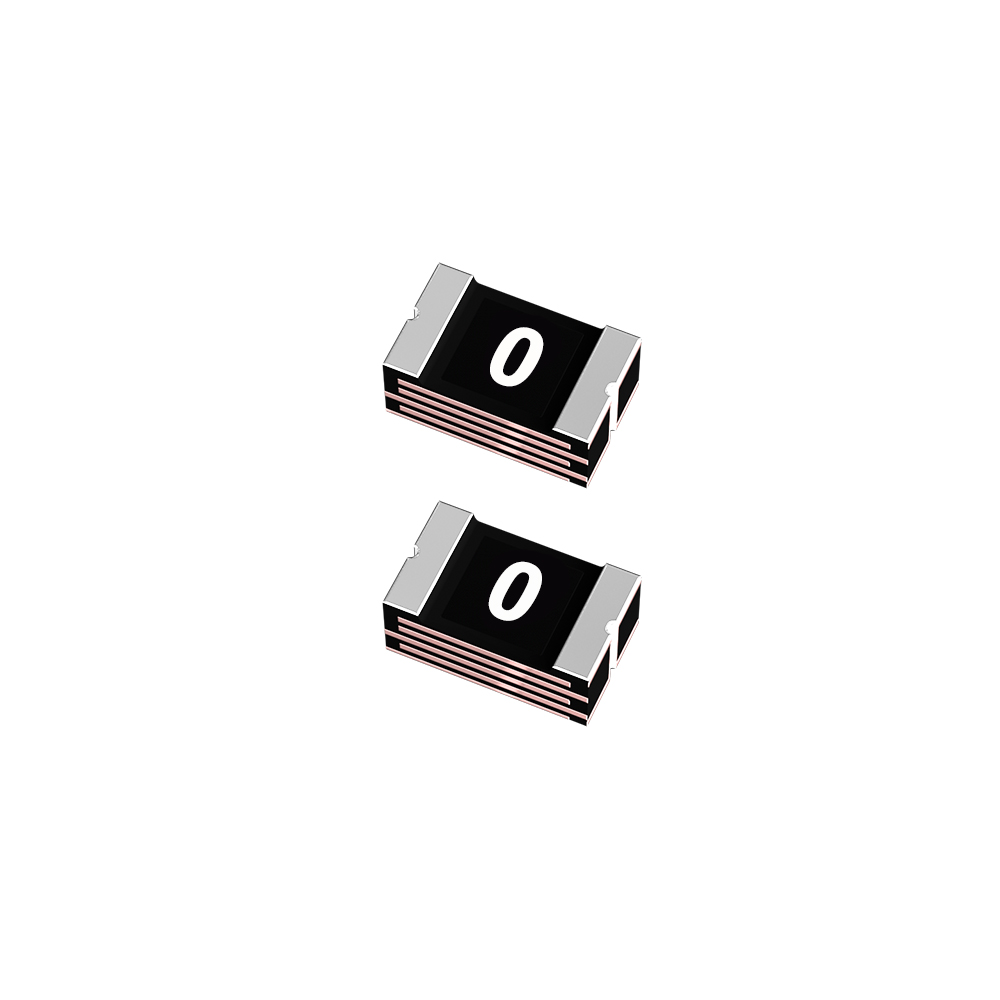

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
0805L100WR
Manufacturer
LittelfuseManufacturer Product Number
0805L100WR
Description
PTC RESETTABLE 6V 1A SMD 0805
Manufacturer Standard Lead Time
10-15
Detailed Description
Product Attributes
| Type | Description |
|---|---|
| Category | Boxes, Enclosures, Racks andBox Components |
| Operating Temperature | -40℃~85℃ |
| Maximum Current | 40A |
| Maximum Voltage | 6V |
| Maximum Operation Time | 300ms |
| Holding Current | 1 A |
| Initial Resistance Value | 60mΩ |
| Trip Current | 1.95A |
| Resistance After Trip | 210mΩ |
Documents & Media
| Resource Type | Link |
|---|
Environmental & Export Classifications
| Attribute | Description |
|---|
Additional Resources
| Attribute | Description |
|---|
In Stock: 19,034
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1+ | $ 1.0973 | |
| 5+ | $ 0.9079 | |
| 10+ | $ 0.8369 | |
| 50+ | $ 0.6949 | |
| 100+ | $ 0.6406 | |
| 250+ | $ 0.5765 | |
| 500+ | $ 0.5320 | |
| 1000+ | $ 0.4902 |
Price For：Each
Minimum:1/Multiple:1
Total amount:
