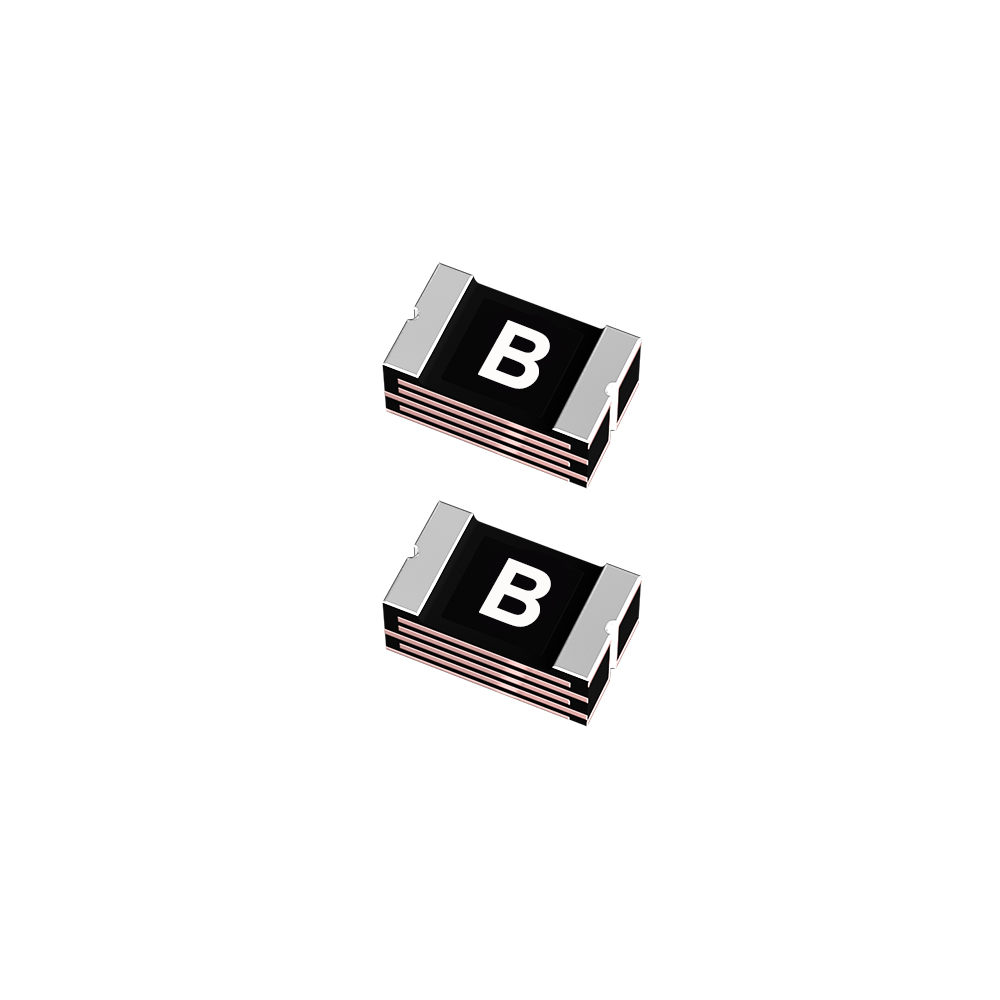

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
0805L005/30YR
Manufacturer
LittelfuseManufacturer Product Number
0805L005/30YR
Description
PTC RESET 30V 0.05A 0805 SMD
Manufacturer Standard Lead Time
10-15
Detailed Description
Product Attributes
| Type | Description |
|---|---|
| Category | Boxes, Enclosures, Racks andBox Components |
| Operating Temperature | -40℃~85℃ |
| Maximum Voltage | 30V |
| Maximum Current | 40A |
| Maximum Operation Time | 1.5 seconds |
| Holding Current | 50mA |
| Trip Current | 150mA |
| Initial Resistance Value | 3.6Ω |
| Resistance After Trip | 20 Ω |
Documents & Media
| Resource Type | Link |
|---|
Environmental & Export Classifications
| Attribute | Description |
|---|
Additional Resources
| Attribute | Description |
|---|
In Stock: 3,359
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 10+ | $ 2.3548 | |
| 100+ | $ 1.8632 | |
| 500+ | $ 1.6390 | |
| 1000+ | $ 1.6126 | |
| 2000+ | $ 1.5791 | |
| 4000+ | $ 1.5471 |
Price For：Each
Minimum:1/Multiple:1
Total amount:
