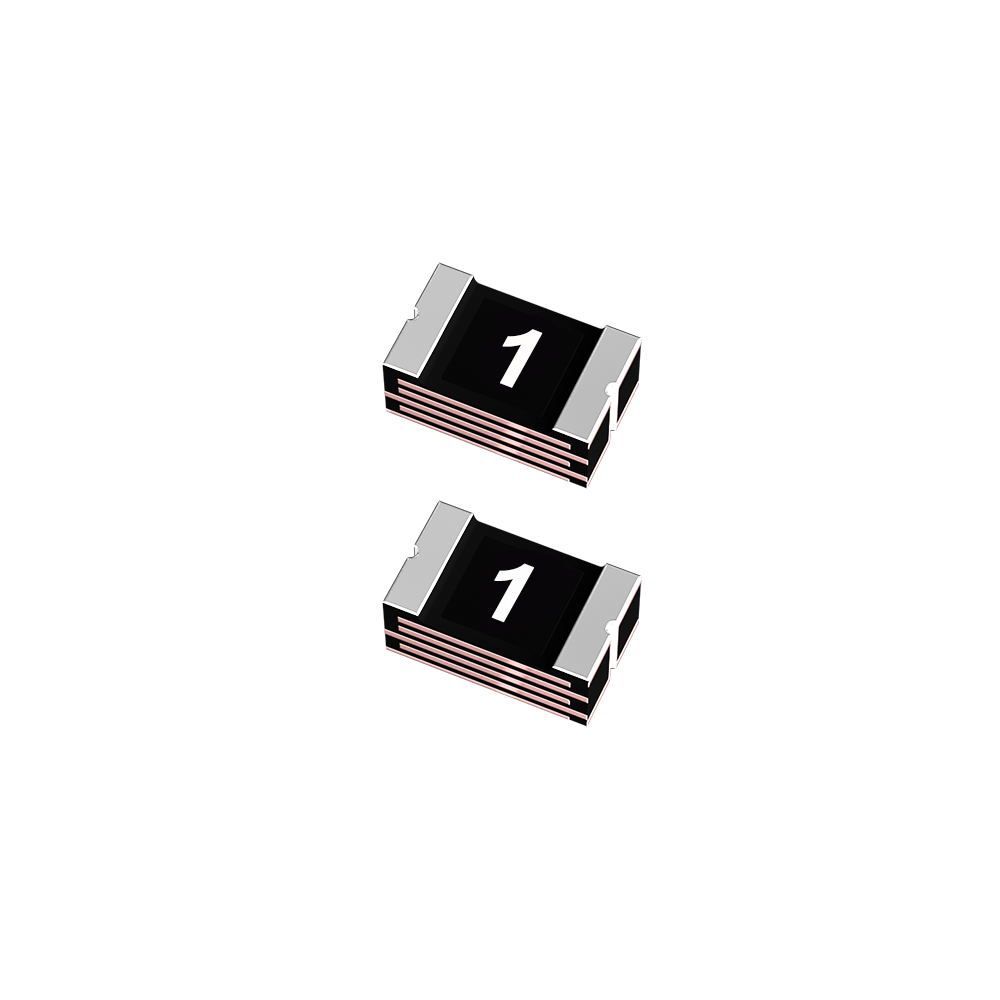

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
0805L010/12XR
Manufacturer
LUTEManufacturer Product Number
0805L010/12XR
Description
品牌:LUTE（陆特）, 封装:0805, 最大电流:40A, 最大电压:12V, 保持电流:100mA, 跳闸电流:300mA, 初始态阻值:750mΩ, 工作温度:-40℃~85℃, 最大动作时间:1.5S, 跳断后阻值:6Ω, 消耗功率:500mW
Manufacturer Standard Lead Time
5-7个
Detailed Description
Product Attributes
| Type | Description |
|---|---|
| Category | Boxes, Enclosures, Racks andBox Components |
| Operating Temperature | -40℃~85℃ |
| Maximum Current | 40A |
| Maximum Voltage | 12V |
| Holding Current | 100mA |
| Maximum Operation Time | 1.5 seconds |
| Xiao Hao Power | 500mW |
| Resistance After Trip | 6Ω |
| Trip Current | 300mA |
| Initial Resistance Value | 750mΩ |
Documents & Media
| Resource Type | Link |
|---|
Environmental & Export Classifications
| Attribute | Description |
|---|
Additional Resources
| Attribute | Description |
|---|
In Stock: 5,060
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 20+ | $ 0.0320 | |
| 200+ | $ 0.0265 | |
| 600+ | $ 0.0237 | |
| 5000+ | $ 0.0223 | |
| 10000+ | $ 0.0209 | |
| 20000+ | $ 0.0195 |
Price For：Each
Minimum:1/Multiple:1
Total amount:
