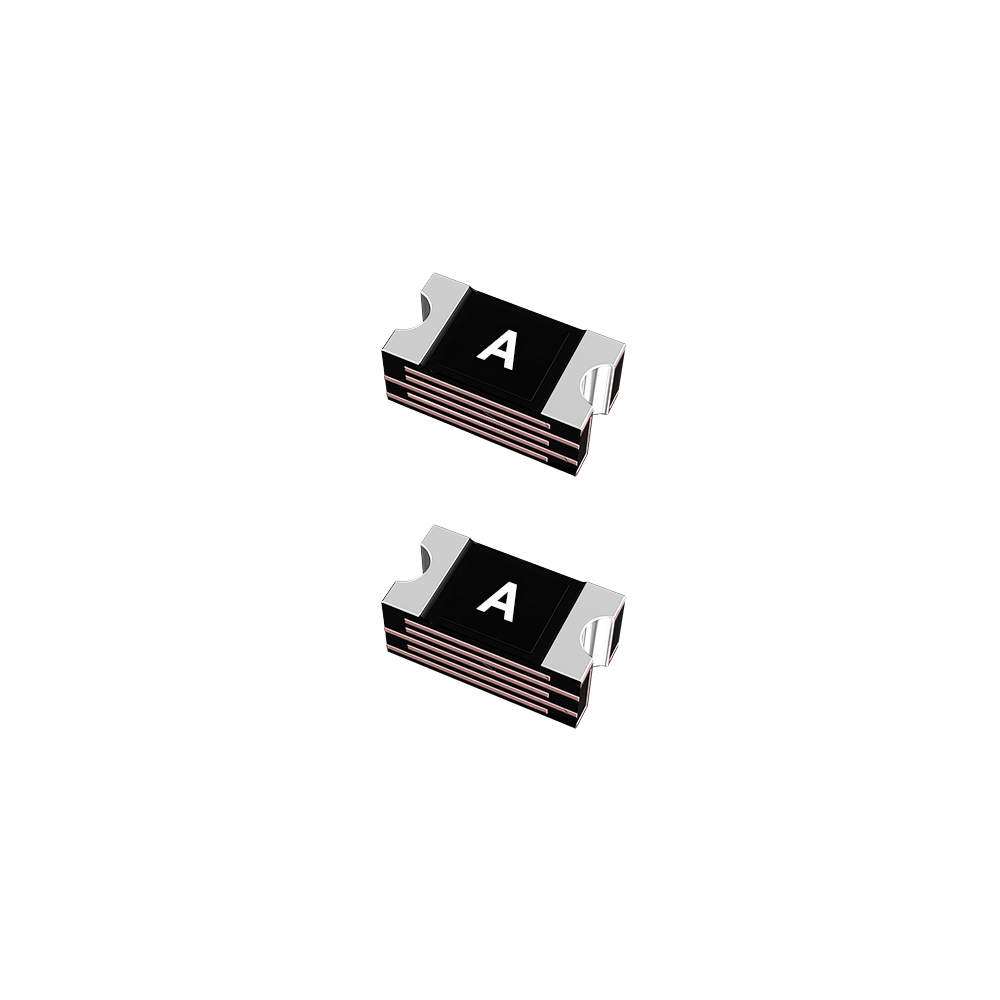

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
0603L004YR
Manufacturer
LittelfuseManufacturer Product Number
0603L004YR
Description
PTC 24V POLYFUSE SMT 0603 .035A
Manufacturer Standard Lead Time
10-15
Detailed Description
Product Attributes
| Type | Description |
|---|---|
| Category | Boxes, Enclosures, Racks andBox Components |
| Operating Temperature | -40℃~85℃ |
| Maximum Voltage | 24V |
| Maximum Current | 20 A |
| Holding Current | 40mA |
| Maximum Operation Time | 1s |
| Initial Resistance Value | 4Ω |
| Trip Current | 120mA |
| Resistance After Trip | 40Ω |
Documents & Media
| Resource Type | Link |
|---|
Environmental & Export Classifications
| Attribute | Description |
|---|
Additional Resources
| Attribute | Description |
|---|
In Stock: 395
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1+ | $ 1.9565 |
Price For：Each
Minimum:1/Multiple:1
Total amount:
