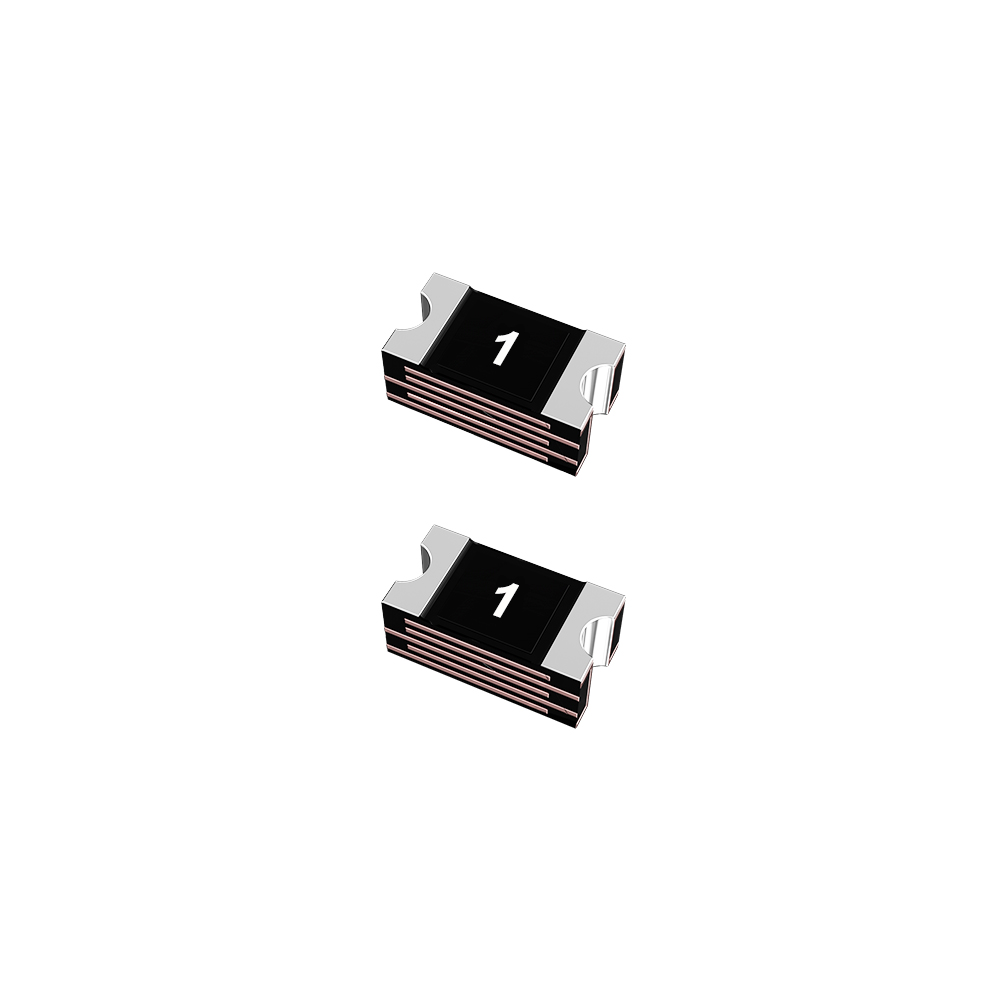

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
0603L005/33XRT
Manufacturer
LUTEManufacturer Product Number
0603L005/33XRT
Description
品牌:LUTE（陆特）, 封装:0603, 最大电流:40A, 最大电压:33V, 保持电流:50mA, 跳闸电流:250mA, 初始态阻值:1.5Ω, 工作温度:-40℃~125℃, 最大动作时间:1.5S, 跳断后阻值:30Ω, 消耗功率:500mW
Manufacturer Standard Lead Time
5-7个
Detailed Description
Product Attributes
| Type | Description |
|---|---|
| Category | Boxes, Enclosures, Racks andBox Components |
| Maximum Voltage | 33V |
| Operating Temperature | -40℃~125℃ |
| Maximum Current | 40A |
| Maximum Operation Time | 1.5 seconds |
| Xiao Hao Power | 500mW |
| Holding Current | 50mA |
| Initial Resistance Value | 1.5Ω |
| Trip Current | 250mA |
| Resistance After Trip | 30Ω |
Documents & Media
| Resource Type | Link |
|---|
Environmental & Export Classifications
| Attribute | Description |
|---|
Additional Resources
| Attribute | Description |
|---|
In Stock: 1,635
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 5+ | $ 0.1170 | |
| 50+ | $ 0.1003 | |
| 150+ | $ 0.0947 | |
| 500+ | $ 0.0849 | |
| 2500+ | $ 0.0822 | |
| 5000+ | $ 0.0794 |
Price For：Each
Minimum:1/Multiple:1
Total amount:
