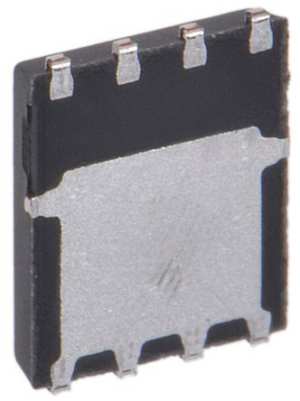

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
FDMS86350ET80
Manufacturer
OnsemiManufacturer Product Number
FDMS86350ET80
Description
N-Channel 80 V 198 A 2.4 mOhm Surface Mount PowerTrench Mosfet - Power56
Manufacturer Standard Lead Time
10-15
Detailed Description
Product Attributes
| Type | Description |
|---|---|
| Category | Boxes, Enclosures, Racks andBox Components |
| Operating Temperature | -55℃ ~ 175℃ |
| Type | N-channel |
| Drain-Source Voltage | 80 V |
| Threshold Voltage | 4.5V@250μA |
| On-Resistance | 2.4mΩ @ 25A, 10V |
| Gate Charge | 155nC @ 10V |
| Power | 3.3W, 187W |
| Continuous Drain Current | 25A,198A |
| Input Capacitance | 8030pF@40V |
Documents & Media
| Resource Type | Link |
|---|
Environmental & Export Classifications
| Attribute | Description |
|---|
Additional Resources
| Attribute | Description |
|---|
In Stock: 5,055
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1+ | $ 13.0008 | |
| 10+ | $ 8.8134 | |
| 100+ | $ 6.6759 |
Price For：Each
Minimum:1/Multiple:1
Total amount:
