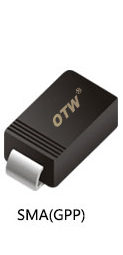

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
SMAJ220CA
Manufacturer
MSKSEMIManufacturer Product Number
SMAJ220CA
Description
极性：双向反向截止电压(Vrwm)：220V击穿电压(最小值)：246V击穿电压(最大值)：272V反向漏电流(Ir)：1uA峰值脉冲电流(Ipp)@10/1000μs：1.13A最大钳位电压：356V峰值脉冲功率(Ppp)@10/1000μs：400W
Manufacturer Standard Lead Time
5-7个
Detailed Description
Product Attributes
| Type | Description |
|---|---|
| Category | Boxes, Enclosures, Racks andBox Components |
| Peak Pulse Power | 400 W |
| Leakage Current | 1 μA |
| Reverse Blocking Voltage | 220V |
| Maximum Clamping Voltage | 356V |
| Breakdown Voltage | 246 V |
| Peak Pulse Current | 1.13A |
Documents & Media
| Resource Type | Link |
|---|
Environmental & Export Classifications
| Attribute | Description |
|---|
Additional Resources
| Attribute | Description |
|---|
In Stock: 0
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 20+ | $ 0.0265 | |
| 200+ | $ 0.0209 | |
| 600+ | $ 0.0181 | |
| 2000+ | $ 0.0153 | |
| 10000+ | $ 0.0139 | |
| 20000+ | $ 0.0125 |
Price For：Each
Minimum:1/Multiple:1
Total amount:
