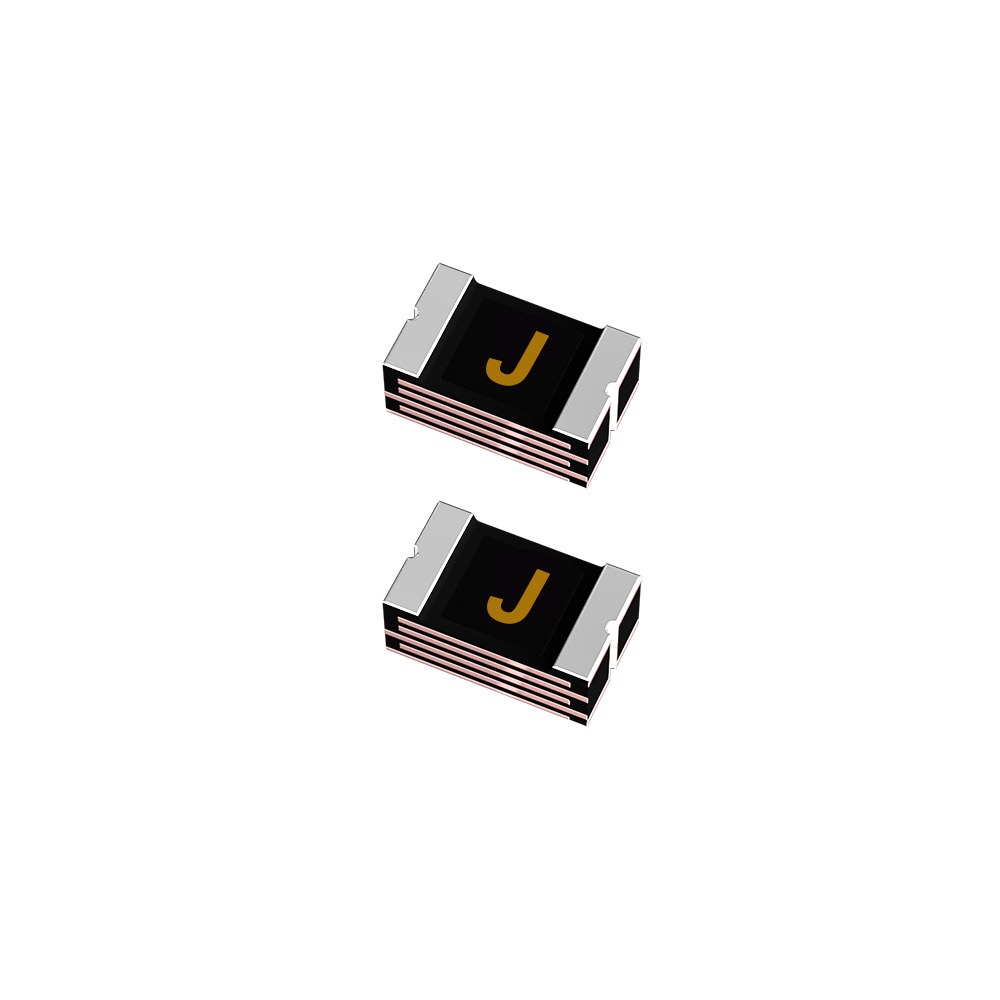

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
0805L150SLYR
Manufacturer
LittelfuseManufacturer Product Number
0805L150SLYR
Description
聚合物-PTC-自恢复保险丝-6V-1.5A-Ih-表面贴装型-0805（2012-公制）-凹陷
Manufacturer Standard Lead Time
2-3
Detailed Description
Product Attributes
| Type | Description |
|---|---|
| Category | Boxes, Enclosures, Racks andBox Components |
| Maximum Operation Time | 500ms |
| Operating Temperature | -40℃~85℃ |
| Maximum Voltage | 6V |
| Maximum Current | 50A |
| Initial Resistance Value | 15mΩ |
| Holding Current | 1.5A |
| Trip Current | 3A |
| Resistance After Trip | 65mΩ |
Documents & Media
| Resource Type | Link |
|---|
Environmental & Export Classifications
| Attribute | Description |
|---|
Additional Resources
| Attribute | Description |
|---|
In Stock: 243
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1+ | $ 0.2172 | |
| 100+ | $ 0.1657 | |
| 1000+ | $ 0.1365 | |
| 2000+ | $ 0.1225 | |
| 4000+ | $ 0.1128 |
Price For：Each
Minimum:1/Multiple:1
