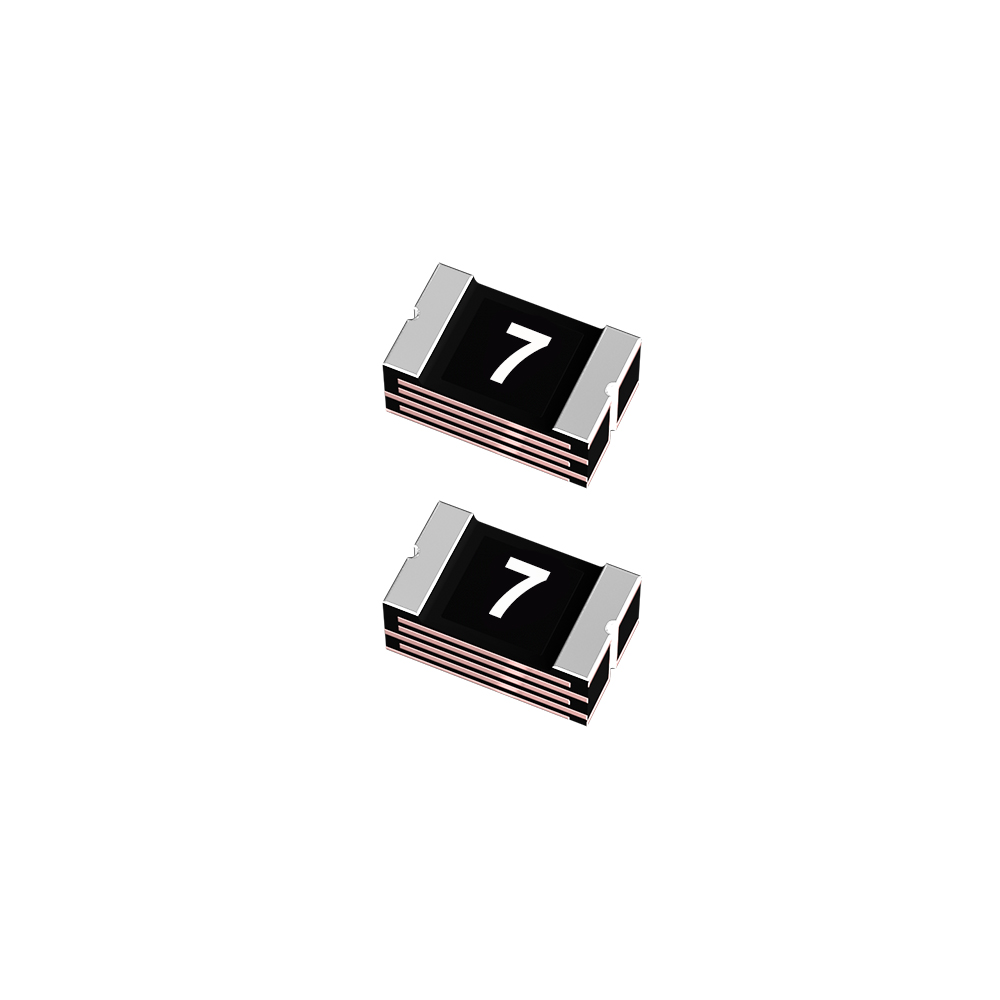

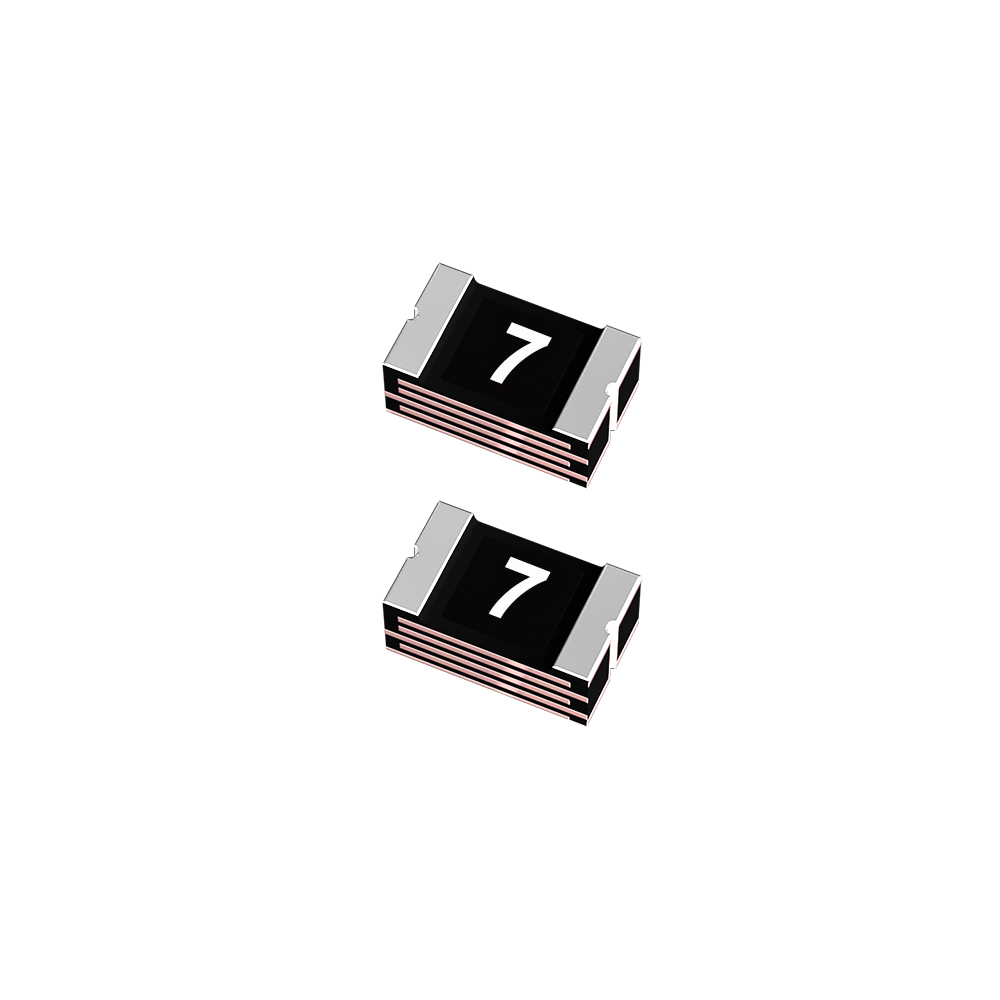

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
0805L050WR
Manufacturer
LittelfuseManufacturer Product Number
0805L050WR
Description
0.5A 0805 SMD resettable PTCs RoHSconf
Manufacturer Standard Lead Time
10-15
Detailed Description
Product Attributes
| Type | Description |
|---|---|
| Category | Boxes, Enclosures, Racks andBox Components |
| Maximum Current | 100A |
| Operating Temperature | -40℃~85℃ |
| Maximum Voltage | 6V |
| Maximum Operation Time | 100ms |
| Holding Current | 500mA |
| Initial Resistance Value | 150mΩ |
| Trip Current | 1A |
| Resistance After Trip | 850mΩ |
Documents & Media
| Resource Type | Link |
|---|
Environmental & Export Classifications
| Attribute | Description |
|---|
Additional Resources
| Attribute | Description |
|---|
In Stock: 3,569
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1+ | $ 0.6253 | |
| 5+ | $ 0.5180 | |
| 10+ | $ 0.4776 | |
| 50+ | $ 0.3969 | |
| 100+ | $ 0.3662 | |
| 250+ | $ 0.3286 | |
| 500+ | $ 0.3036 | |
| 1000+ | $ 0.2799 |
Price For：Each
Minimum:1/Multiple:1
Total amount:
