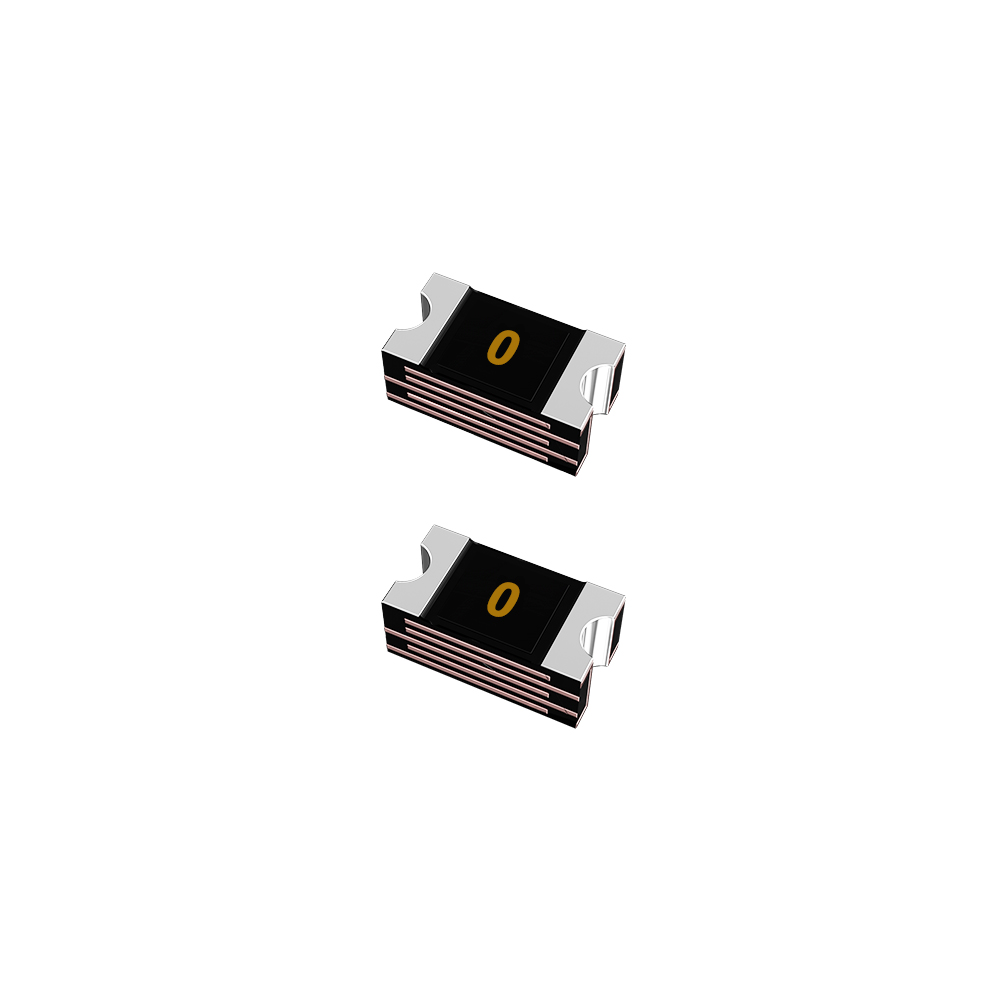

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
0603L075/8AR
Manufacturer
LUTEManufacturer Product Number
0603L075/8AR
Description
品牌:LUTE（陆特）, 封装:0603, 最大电流:40A, 最大电压:8V, 保持电流:750mA, 跳闸电流:1.5A, 初始态阻值:60mΩ, 工作温度:-40℃~85℃, 最大动作时间:100m, 跳断后阻值:450mΩ, 消耗功率:500mW
Manufacturer Standard Lead Time
5-7个
Detailed Description
Product Attributes
| Type | Description |
|---|---|
| Category | Boxes, Enclosures, Racks andBox Components |
| Operating Temperature | -40℃~85℃ |
| Maximum Current | 40A |
| Holding Current | 750mA |
| Trip Current | 1.5A |
| Maximum Operation Time | 100ms |
| Maximum Voltage | 8V |
| Initial Resistance Value | 60mΩ |
| Xiao Hao Power | 500mW |
| Resistance After Trip | 450mΩ |
Documents & Media
| Resource Type | Link |
|---|
Environmental & Export Classifications
| Attribute | Description |
|---|
Additional Resources
| Attribute | Description |
|---|
In Stock: 6,050
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 10+ | $ 0.0460 | |
| 100+ | $ 0.0376 | |
| 300+ | $ 0.0334 | |
| 1000+ | $ 0.0292 | |
| 4000+ | $ 0.0265 | |
| 8000+ | $ 0.0251 |
Price For：Each
Minimum:1/Multiple:1
Total amount:
